Software operation

Software interface

!

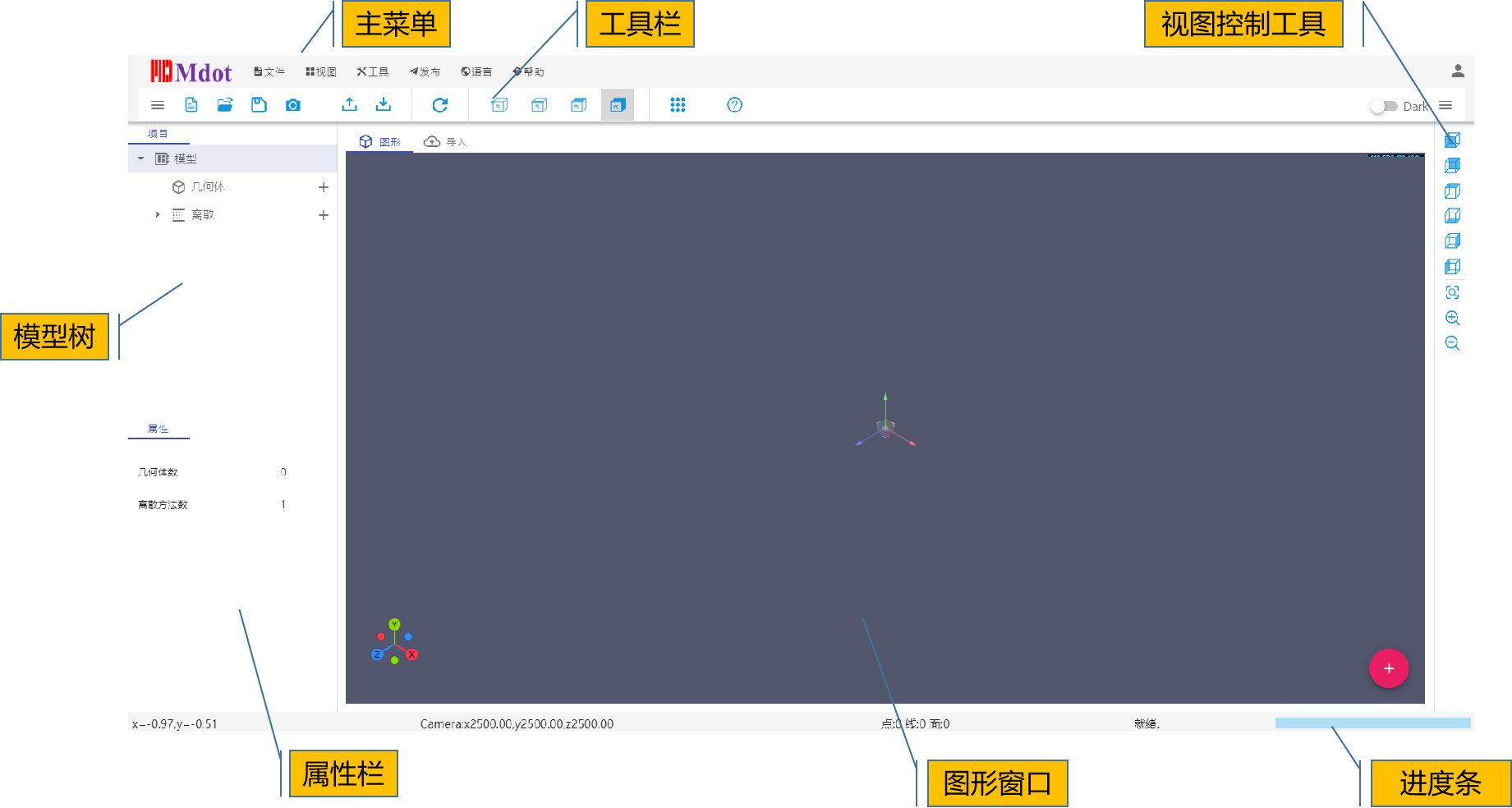

This is the interface of MDOT, which consists of main menu, toolbar, model tree, graphic window and calculation progress bar.

Main menu

File	new	Click to jump to the new project window
	open	Click to jump to the open project window, and you can choose to open my project or public project
	save	Click to save the current project
	import	Click to jump to the import window, and you can choose to import the local model or import from the public model library
	export	Click to jump to the export window, select the type of geometric model or mesh model to export
	reset scene	Click to reset the view scene
View	show: points	Click to show or hide all hard points on geometry
	show: lines	Click to show or hide all boundary lines in geometry
	show: faces	Click to show or hide all faces in geometry
	display: nodes	Click to display or hide all discrete nodes
	background color setting	Click to set the view background color
Tools	discrete	Click to execute discrete
Unit	mm, N, t, s, MPA	Click to switch to mm, N, t, s, MPA unit system
	m, N, kg, s, PA	Click to switch to m, N, kg, s, PA unit system
	ft, LBF, slug, s, LBF / ft 2	Click to switch to FT, LBF, slug, s, LBF / ft 2 unit system
	in、lbf、lbf. S 2 / in, s, psi	Click to switch to in, LBF, LBF S 2 / in, s, psi unit system
Language	language Chinese	Click to switch to Chinese mode
	language English	Click to switch to English mode
Help	software help	Click to view the software help document
	version information	Click to view version information
	feedback and suggestions	Click to submit feedback suggestions
	user license agreement	Click to view the user license agreement
	privacy policy	Click to view the user's privacy policy

Toolbar

toolbar
New	jump to the new project window
Open	jump to the open project window
Save	save the current project
Import	jump to the import window
Export	jump to the export window
Reset	clear the current content, reset the graphics window
Geometry: points	select points in geometry
Geometry: lines	select lines in geometry
Geometry: faces	select faces in geometry
Geometry: bodies	select bodies in geometry
Discretization	Click to discretize, and the graphics window will display the discretized rendering
Help	Click to enter the help document
Isometric drawing	Click to view isometric drawing
Front view	Click to view the front view
Rear view	Click to view the rear view
Top view	Click to view the top view
Bottom view	Click to view the bottom view
Right view	Click to view the right view
Left view	Click to view the left view
Center the object	Click to center the geometry
Enlarge	Click to enlarge the view
Zoom out	Click to zoom out the view
